LEAN ALUMINIUM CONSTRUCTIONS

The solutions we present demonstrate our capabilities in designing and manufacturing custom aluminium structures tailored for companies implementing LEAN MANUFACTURING principles. We approach each project individually, ensuring that every structure is adapted to the client's specific needs and requirements—maximizing the efficiency of production resources within their operations.

How Our Purchasing Process Works ?

The client has a specific problem they want to solve.

  •
For example: transporting very unusual boxes with long aluminium parts between the cutting area and CNC machining. The client specifies the number of boxes and parts to be transported on a single cart.
  • Based on our experience, we develop a concept to address the challenge and prepare a tailored offer
  • We present our solution for consultation and feedback
  • If needed, we introduce modifications to meet the client’s expectations
  • Once the final concept is approved, we prepare detailed internal production documentation and begin manufacturing.
    Most orders are completed within 3 to 5 weeks from the moment of final approval.

Need a Standard or Slightly Modified Solution?

  • The client requires a solution identical or slightly modified compared to one from our existing portfolio
    For example: a different workbench height, a larger CNC tool holder storage unit, or a trolley with adjusted height or shelf spacing.
  • We prepare a detailed offer for the modified structure—usually on the same day
  • Once the offer is approved, we update the production documentation (if necessary) and begin manufacturing
    Just like in custom orders, most of these projects are completed within 3 to 5 weeks from the final approval
Some of our most popular solutions—such as FIFO flow racks, CNC tool trolleys, or packing workstations—are often available in stock for immediate delivery

For every order, no matter how small, we create detailed internal production documentation. This enables us to quickly resume production whenever a client needs a solution we have previously manufactured. The delivered carts, tables, racks, or assembly stations will be identical to those produced — for example, a year earlier.

PROJECT EXAMPLES

You can find more photos in our catalog located at the bottom of the page — feel free to download it!

ASSEMBLY AND PACKING WORKSTATIONS



Selecting the right packing or assembly workstation is a key factor in the product preparation process in manufacturing plants, e-commerce, distribution centers, and wholesale operations.

A properly designed and manufactured workstation allows for:

  • Increased packing/assembly efficiency by shortening cycle times — everything needed for the process is within the worker’s reach

  • Reduced losses thanks to the appropriate work surface, e.g., worktops with a flexible coating for packing delicate items such as ceramics, glassware, or precision metal parts

  • Providing an ergonomic workspace to enhance comfort and safety for workers

The workstations presented here are examples of completed projects and can be configured in almost any form to best meet specific requirements.

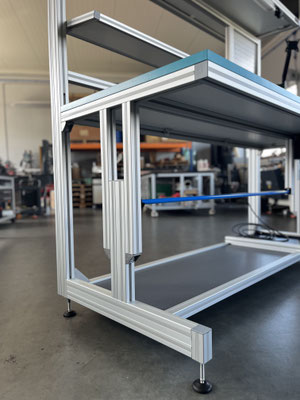

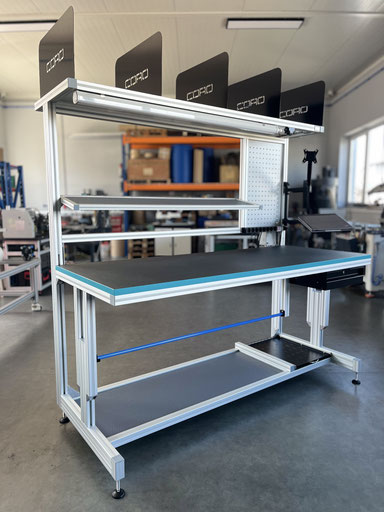

Workstation configuration with an 800x2000 mm worktop from the photo:

  • Height-adjustable worktop from 80 to 105 cm

  • 25 mm thick worktop with approx. 2.5 mm flexible black coating

  • Suspended drawer with lock, made of powder-coated steel sheet

  • Adjustable monitor holder plus laptop/keyboard tray

  • Lower rubberized shelf recessed into profiles

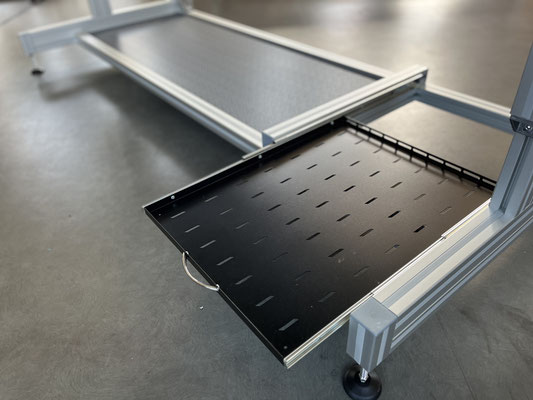

  • Additional pull-out shelf, e.g., for a printer, made of powder-coated steel sheet

  • Adjustable-height inclined rubberized shelf

  • Tool board made of 1.5 mm powder-coated steel sheet

  • Power strip

  • Philips LED lighting for the work area

  • Connection panel with differential and overcurrent protection

  • Upper rubberized shelf with 5 compartments (e.g., for cartons), made of 1.5 mm powder-coated steel sheet

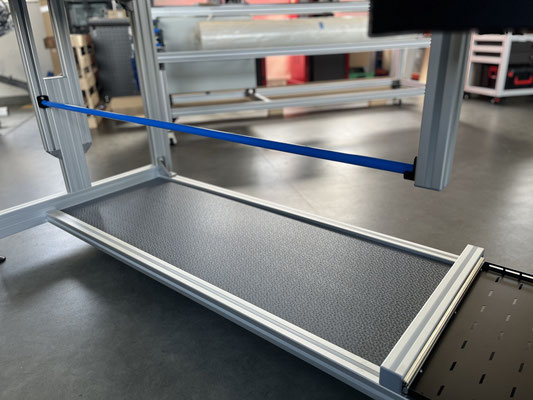

  • Additional rod for bubble wrap roll

  • M12 adjustable feet

  • Entire frame made of anodized structural aluminium profiles

  • Profile grooves capped

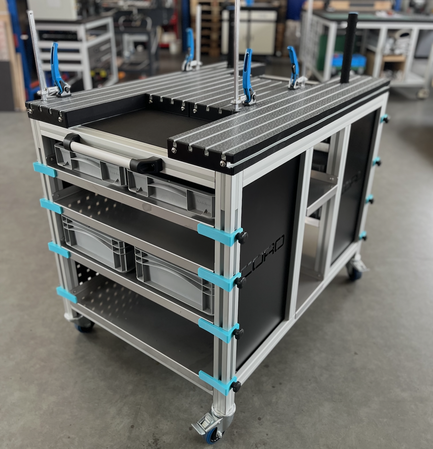

ASSEMBLY TROLLEY 725x1005x890 mm



Trolley equipped with a T-slot table for quick clamping and fixture setup.

  • Load capacity: 500 kg

  • Dimensions: 725x1005 mm, Height: 890 mm

  • Frame made of 4545 aluminium structural profiles

  • Worktop made of 45x180 mm aluminium profile, rubber-coated on top

  • Profile grooves capped

  • 8 stainless steel shelves, 1.0 mm thick, laser-cut and CNC-bent – dimensions: 635x405 mm

  • 2 stainless steel shelves, 1.0 mm thick, laser-cut and CNC-bent – dimensions: 235x725 mm

  • 4 swivel castors with brakes – rubber-coated, blue, load capacity 150 kg per wheel

  • Perforated tool boards made of 1.5 mm steel sheet, powder-coated in textured black

  • Side panels made of 1.5 mm steel sheet, powder-coated in textured black

  • Rubber-coated shelves

  • Integrated transport handles

CNC TOOL HOLDER TROLLEY 885x520x890 mm

Equipped with a protective lid lifted by gas struts.

  • Load capacity: 500 kg

  • Dimensions: 885x520 mm, Height: 890 mm

  • Frame made of 4545 aluminium structural profiles

  • Profile grooves capped

  • Protective lid – frame made of 3030 aluminium profiles, solid polycarbonate (PC) panels, gas-lift opening

  • 3 main tool storage blocks with screw-in inserts – compatible with CAPTO, HSK, ISO, VDI, and MORSE holders (7 inserts per block)

  • Tool holders with adjustable height positioning

  • Set includes 21 CNC tool inserts

  • Option to add an additional tool storage unit in the lower section

  • 4 swivel castors with brakes, rubber-coated (blue), 150 kg load capacity per wheel

  • Perforated panels made of 1.5 mm powder-coated steel, RAL 7035

  • Solid dibond side panels, 3 mm thick

  • Rubber-coated shelves

  • Integrated transport handle

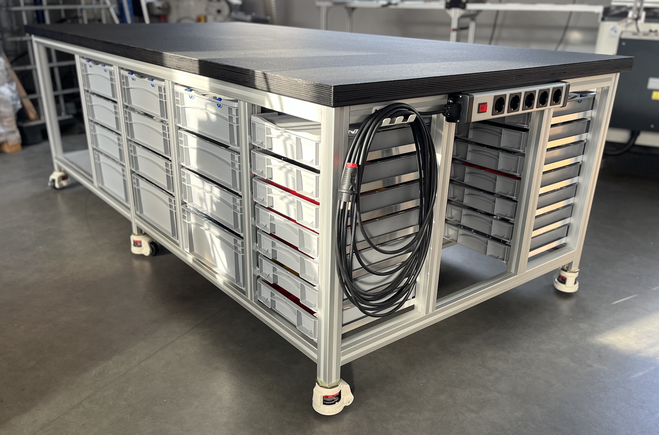

LARGE MOBILE ASSEMBLY TABLE 1250x2500 mm – With Leveling Feet and EURO Box Storage

  • Solid 1250x2500 mm worktop, 40 mm thick, made of plywood coated with PVC and additionally finished with polyurethane varnish

  • Optional worktop with 20 mm hole system, spaced 100x100 mm or 200x200 mm

  • 6 swivel wheels with integrated leveling feet, each with 500 kg load capacity

  • Lower shelf: 1200x730 mm, rubber-coated

  • Long part shelf: 300x2090 mm

  • Storage compartments for EURO boxes:

    • 14 slots for 300x400x70 mm boxes

    • 3 slots for 400x600x170 mm boxes

    • 9 slots for 400x600x120 mm boxes

    • 3 slots for 300x400x170 mm boxes

    • 9 slots for 300x400x120 mm boxes

  • Power strip with 4 or 5 sockets, 16A



FIFO Flow Rack – 2025x400x1500 mm

  • Capacity: 20 boxes 300x400 mm (4 levels with 5 boxes each)

  • Load capacity: 600 kg

  • 4 roller track sets for 300 mm wide containers, each with end stops

  • 4 swivel castors with brakes

  • Roller tracks with 33 mm pitch

  • Load capacity: 10 kg per roller, 5 mm steel axle, with plain bearing system

  • Roller tracks integrated with 2 mm galvanized steel side guides

  • Roller tracks supported and mounted on 4545 aluminium structural profiles

  • 2 ergonomic vertical handles for easy transport

  • Profile grooves sealed with end caps

  • Additional edge gaskets to protect EURO boxes

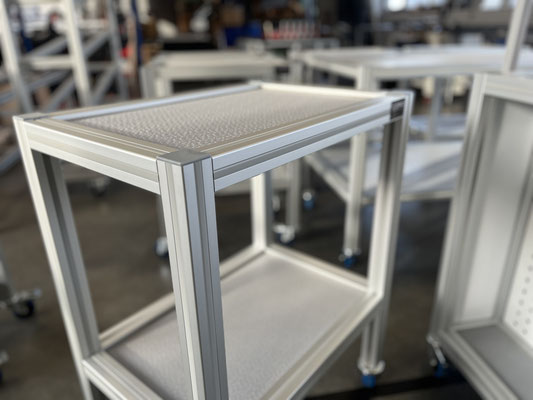

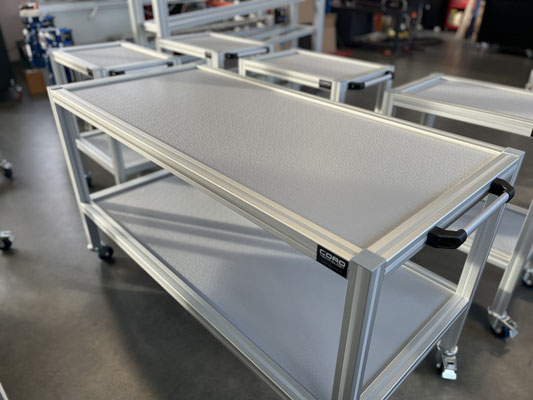

CUSTOM TRANSPORT & TOOL TROLLEYS

Each trolley is custom-built based on an individual design tailored to the transport requirements and dimensions specific to your company’s operations.



Standard specification includes:

  • Equipped with 4 swivel castors, including 2 with brakes

  • Bearings in all wheels, each with a 150 kg load capacity

  • Two fixed shelves (optionally: one pull-out shelf on runners)

  • Shelves recessed into the frame and rubber-coated

  • Ergonomic handle for easy transport

  • All profile grooves sealed with end caps

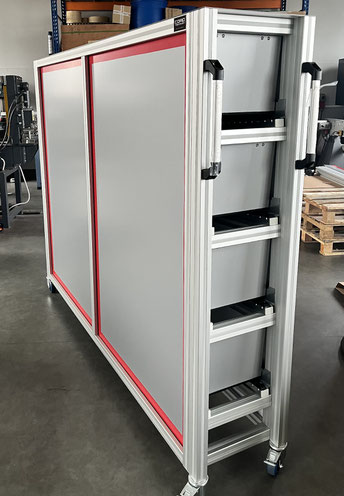

FIFO FLOW RACK 2025x1500x400 mm WITH ENCLOSURE



FIFO rack designed to hold 20 EURO boxes (300x400 mm), enclosed in a sleek housing made of DIBOND panels. Equipped with lockable doors and 4 unidirectional drop-in flaps for easy box insertion.

  • Capacity: 20 boxes 300x400 mm (4 levels with 5 boxes each)

  • Load capacity: 600 kg

  • 4 roller track sets for 300 mm wide containers, each with end stops

  • 4 swivel castors with brakes

  • Roller tracks with 33 mm pitch

  • Load capacity: 10 kg per roller, 5 mm steel axle, with plain bearing system

  • Roller tracks integrated with 2 mm galvanized steel side guides

  • Roller tracks supported and mounted on 4545 aluminium structural profiles

  • 2 vertical transport handles for easy maneuverability

  • Profile grooves sealed with end caps

  • Additional edge gaskets to protect EURO boxes



TROLLEYS & TABLES FOR MACHINES AND EQUIPMENT



Custom-built trolleys and tables designed for small machines and equipment.
The presented trolley can function as a stationary workstation when equipped with leveling feet.

  • Equipped with 4 swivel castors or leveling feet

  • Option to use leveling castors for combined mobility and stability

  • Bearings in all wheels, each with a 150 kg load capacity

  • Fully customizable shelf and drawer configurations

  • Option to include additional power strips

  • Worktops available in plywood, MDF, or laminated boards
    – with optional anti-slip coating, galvanized steel, or stainless steel finishes

MES WORKSTATION FOR MACHINE OPERATOR – 1500x800 mm, H = 2140 mm

  • 1500x800 mm HPL laminated worktop, 38 mm thick, light grey

  • Durable tool panel 450x1500 mm, made of 1.5 mm powder-coated steel, RAL 7035

  • LED lighting across the full 1500 mm width, 5000K color temperature

  • Power strip under the desk with 5 sockets

  • Electrical distribution box with residual current and overcurrent protection

  • 5-meter power cable with plug

  • Cable tray mounted under the worktop

  • PC holder

  • Suspended drawer in grey-blue, lockable with key

  • 2 monitor arms mounted in the 4545 aluminium profile system

  • Profile grooves sealed with end caps

  • 4 leveling feet with adjustable height

ASSEMBLY WORKSTATION

  • Rubber-coated worktop recessed into a frame made of 4545 aluminium profiles

  • 4 swivel castors with integrated leveling function

  • 2 additional shelves

  • Storage space for 40 EURO boxes (300x400 mm)

Download
CORO Technology - Katalog konstrukcji LEAN
CORO - Katalog Konstrukcje LEAN 2025.pdf
Adobe Acrobat Document 9.8 MB
Download

Feel free to download our catalog featuring sample LEAN bolted aluminum constructions.
